Function introduction

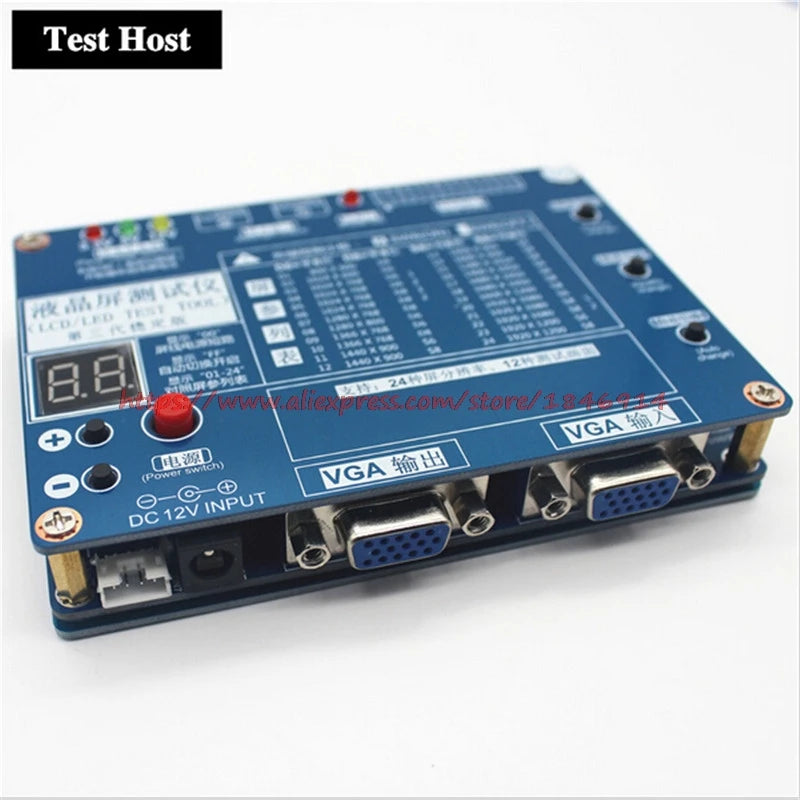

LCD screen tester with a new hardware driver and software solutions, the new white green panel, clear and beautiful screen printing. Improved the third edition of many of the details, so that more and more perfect products.

1, the use of simple and convenient, built-in 55 LVDS LCD screen resolution procedures;

2, through the button to switch the digital display of the corresponding resolution of the value, you can point screen;

3, increase the LCD power supply short circuit protection function, prevent screen line dislocation or power supply to drive the LCD circuit board is damaged, screen line short circuit after the digital display flashing "00" buzzer sound, short after the removal of normal (no more than ten minutes long time short circuit);

4, built in a variety of standard test plans, test charts and the role of the following instructions;

5, test panel comes with operating instructions, use at a glance;

6, with a key automatic baking machine mode, easy maintenance, factory assembly machine;

7, plug in the external VGA line automatically switch to the external VGA input signal display;

8, almost compatible with the 7 inch -84 inch LVDS interface LCD/LED LCD screen test 95%;

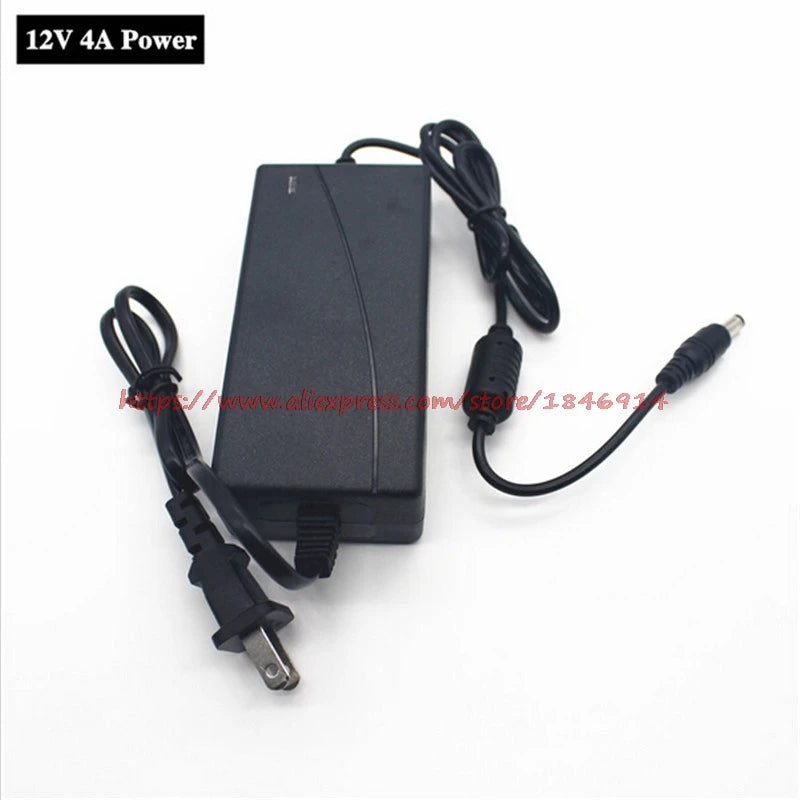

9, universal 12V LCD power supply, current size according to the actual needs of the screen test;

10, increase the anti theft version of the security function, unauthorized removal, the program self destruct, the consequences of self.

The color screen used to detect whether the lack of maintenance display color, white screen, screen, adverse interference jitter fault;

Grayscale screen: used to detect whether the maintenance of the display screen, white screen, the screen is bad, interference jitter, the effect of poor color transition, such as failure;

The black screen for detection and maintenance display is bright, bright line, bright band, light, color, color point, partial failure and poor;

The white picture: for the detection of maintenance monitor whether the dark spots, dark band, white spot, partial color, CRT, magnetization, aging, low brightness yellow lamp fault;

The red screen: for detection and maintenance display is bright, color, point, partial color, CRT magnetization, uneven color fault;

The green screen: for inspection and maintenance display is bright, color, point, partial color, CRT magnetization, uneven color fault;

The blue screen for detection and maintenance display is bright, color, point, partial color, CRT magnetization, uneven color fault.

The WINDOWS color: this color is our specially designed for detecting whether the display screen LCD repair line (see ordinary picture), dark spots, dark band, partial color, CRT magnetization, failure and poor picture.

Note: when used, please confirm the LCD screen supply voltage, line number, resolution, select the appropriate screen line, because of improper use damage, need to charge material maintenance costs and postage themselves!
